Product Description
Manufacturer: Eaton Cutler-Hammer
MPN: 9-3185-1
Style: 9-3185-1KIT
PN: WX170906
UPC: 782116326478

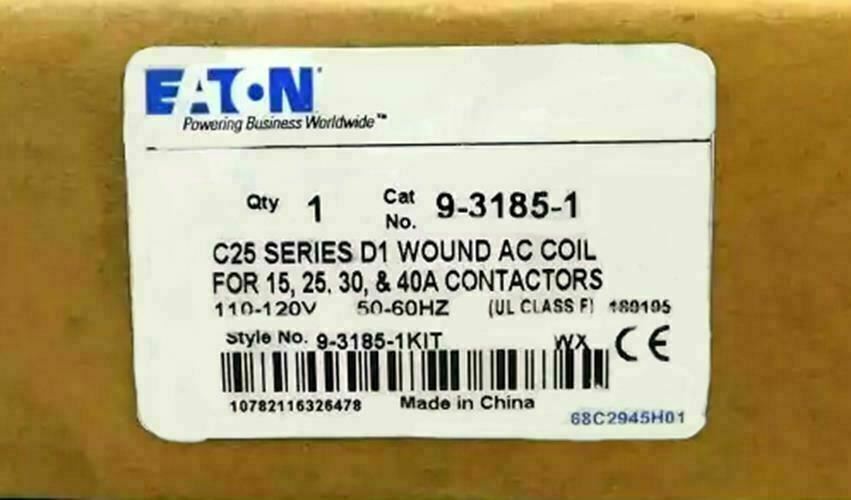

Part Name: C25 Series D1 Wound AC Coil for 15, 25, 30, & 40A Contactors
Condition: New
Dimensions:
Height: 2.50 IN
Length: 2.50 IN
Width: 1.875 IN
Weight: 3 LBS
Used With: Definite Purpose Contactors
Motor Control Renewal Parts/Accessories - COIL
Amperage Rating: 15-40A (15A, 25A, 30A, 40A)
Prod Size: 50MM
Voltage Rating 110-120 VAC
Class F UL Listed, 155 °C
Inrush (Maximum): 74.69 VA, 51.6 W
Sealed (Maximum): 5.79 VA, 1.81 W
Coil Suffix: A
MPN: 9-3185-1
Style: 9-3185-1KIT
PN: WX170906
UPC: 782116326478
Part Name: C25 Series D1 Wound AC Coil for 15, 25, 30, & 40A Contactors
Condition: New
Dimensions:
Height: 2.50 IN
Length: 2.50 IN
Width: 1.875 IN
Weight: 3 LBS
Used With: Definite Purpose Contactors
Motor Control Renewal Parts/Accessories - COIL
Amperage Rating: 15-40A (15A, 25A, 30A, 40A)
Prod Size: 50MM
Voltage Rating 110-120 VAC
Class F UL Listed, 155 °C
Inrush (Maximum): 74.69 VA, 51.6 W
Sealed (Maximum): 5.79 VA, 1.81 W
Coil Suffix: A
